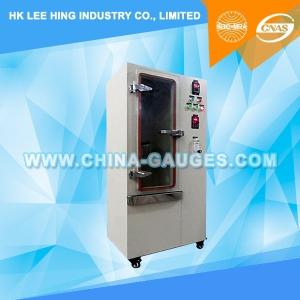

IPX1 IPX2 Rain Spray Test Cabinet
Brand Name : JLX
Model Number : LX-IPX12A-600
Certification : ISO 17025 CNAS & ILAC Test Report
Place of Origin : Made in China
MOQ : 1
Payment Terms : T/T, Western Union
Supply Ability : 200 per month
Delivery Time : 5 working days
Packaging Details : Export standard packing
Standard : IEC60529
Test standard:
IPX1 IPX2 Rain Spray Test Cabinet is designed according to the relevant standard requirements of IEC60529:1989+A1:1999 IPX1/2.
Application:
IPX1 IPX2 Rain Spray Test Cabinet applied to test the shell’s waterproof effect of electronics, automobile and communication, using rainfall simulation to test the product’s waterproof performance and assess the product’s waterproof performance’s loss classification.
Features:
1, S304 stainless steel water box and test chamber;
2, Box-type structure, water recycling;
3, Observation window: making use of tempered glass, durable;
4, A drop of rain flow: Frequency adjustable, adjusted manually;
5, Test nozzle: Stainless steel nozzle orifices can be replaced at any time according to requirements of the standard aperture.
6, Filter Action: Device standard filter to prevent clogging of the pinhole; the filter can be replaced periodically;
7, One key to start, automatic shutdown, simple intelligence.
Technical parameters:
| Equipment parameters | |
| Item No. | LX-IPX12A-600 |
| Inner size of the work room | 800*800 mm |
| Dripping area | 600*600 mm |
| Put the tube aperture water | 0.4 mm of Diameter |
| Distance between the hole | 20*20 mm |
| Test bench speed | 1 r/min |
| Test bench diameter | 600 mm |
| Test bench up-down adjusting range | 200-300 mm |
| Test bench adjustable tilt range | 15° |
| Testing time | 0-999 min |
