Ipx5/6 Jet Hose Nozzle IEC60529
Place of Origin : China
Brand Name : Julixing
Certification : ISO 17025 CNAS Test Report
Model Number : LX-IPX5/6
Transportation : DHL Express
MOQ : 1 set
Price : Contacts us
Packaging Details : Standard packing
Delivery Time : 7~9 working days
Payment Terms : T/T,Western Union
Supply Ability : 500 Set per month
This tester is used for the verification test of the degree of protection to the risk of water penetration provided by the
wrapper of equipment in fulfillment of IPX5 and IPX6 according to the IEC 60529 Section 14.2.5. & 14.2.6.

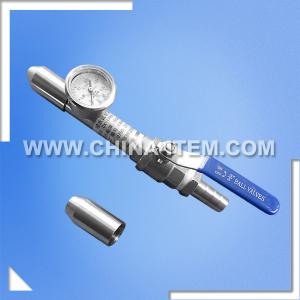

The device consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve.
The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.
| Item | IPX5 | IPX6 |
| Water supply | Water flow rate > 12.5L/min±5% clean water witho ut inclusion. It can be achieved by the stainless steel water tank and pressurized equipment. | Water flow rate > 100L/min±5% clean water witho ut inclusion. It can be achieved by the stainless steel water tank and pressurized equipment. |
| The nozzle diameter | 6.3 mm | 12.5 mm |
| Water flow | 12.5±0.625L/min, Flow meter is adjustable. | 100±0.625L/min, Flow meter is adjustable. |
| Testing time | Not less than 1min/m2 (not less than 3 mins) | |
| Environment requirements | Dedicated IP waterproof test room whose width is more than 3m, With good function of inflow and drainage. Wall installation. | |
| The distance from jet nozzle to enclosure | 2.5~3m | |
| Pressure Gauge | 0 - 2.5 bar ( 0 - 0.25 MPa ) | |
| Reference standards | IEC60529,IEC60598-1,IEC60335-1,IEC60745-1 | |
| Nozzle Material | Stainless Steel | |
| Include | Pressure gauge, Stainless steel nozzle IPX5 and IPX6, Valve for water flow regulation and shut off, Hose connector. | |
