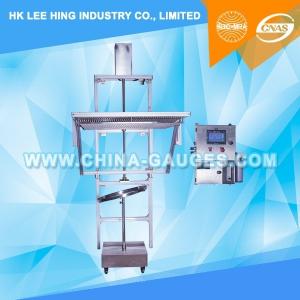

IPX1 IPX2 Fixed Type Vertical Drop Rain Tester

Brand Name : JLX

Model Number : LX-IPX12C-1000

Certification : ISO 17025 CNAS & ILAC Test Report

Place of Origin : Made in China

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 200 per month

Delivery Time : 5 working days

Packaging Details : Export standard packing

Standard : IEC60529

Contact Now

Test standard:

IPX1 IPX2 Fixed Type Vertical Drop Rain Tester is designed according to the relevant standard requirements of IEC60529:2001 Degrees of protection provided by enclosures (IP Code).

Application:

Vertical Rain Drop Test Machine applied to test the shell’s waterproof effect of electronics, automobile and communication, using rainfall simulation to test the product’s waterproof performance and assess the product’s waterproof performance’s loss classification.

Features:

1. Suitable for IPX1, IPX2 test.

2. Hanging wall structure, drip tray running smoothly.

3. Equipment rack, sample turntable all made of high quality aluminum and SUS304 stainless steel plates, to ensure that long-term use does not rust.

4. Water Tank Lifting drive: Screw (SUS303 stainless steel T32X6), nut means driving movements, have fall protection and other security features. When an object against the tank below the water tank, the nut will automatically from the tank, to prevent damage to the tank and the body functions.

5. A drop of rain board: vacuum design, using high rustproof stainless steel manufacturing, durable.

6. Drop of rain flow: flow meter comes with control valve, manual adjustment.

7. Rainfall device can automatically lift, the nozzle is located at the highest point of the test of the 200mm at the time of the automatic stop (by photoelectric switch detection).

8. Test needle: 0.4mm diameter, fully in line with the test standard; detachable type, easy to replace.

9. Spray nozzle contact bit brass taper design, without the need for tools to replace the needle; the needle below the installation of a stainless steel mesh shield, to prevent the test operation of the head accidentally touch the test needle.

10. Filtering measures: the device with a high accuracy of the filter, can effectively filter the impurities in the water, the filter can be replaced regularly.

11. With compressed air dry function: after the completion of the test can be used to remove excess water from the water tank to prevent the long time to scale blockage of water blocking pinhole.

12. The turntable motor adopts stepping motor, which can set the speed of the turntable directly on the touch screen. It can ensure the accuracy of the IPX1 standard, and can automatically complete the 4 positions of the IPX2 test requirements.

13. Control system: using Taiwan Weinview 7 Inch Touch Screen Panasonic + PLC.

Technical parameters:

No. Item LX-IPX12C-1000
1 Dripping area 1000*1000mm
2 External Dimension L1200*D1200*H2500mm
3 Rotary table size ¢600 mm
4 Drop diameter ¢0.4mm.
5 Distance between the hole 20*20 mm
6 Rainfall 1-5mm/Min(±0.5mm/min)
7 Flow adjustment mode Manual adjustment
8 Drop rain box lift height 1000*1800 Adjustable
9 Turntable bearing 50KG
10 Test bench speed 1 r/min
11 Test bench adjustable tilt range 0° or 15°
12 Test bench up-down adjusting range Fixed type
13 Testing time 0-999 min
14 Protection function Leakage, water shortage, short circuit
15 Power supply 380V
16 Power requirements 3 KW
17 According to IEC60529:1989+A1:1999
