Spray Nozzle IP Code IEC60529

Place of Origin : China

Brand Name : Julixing

Certification : ISO 17025 CNAS Test Report

Model Number : LX-IPX3/4

Transportation : DHL Express

MOQ : 1 set

Price : Contacts us

Packaging Details : Standard packing

Delivery Time : 7~9 working days

Payment Terms : T/T,Western Union

Supply Ability : 500 Set per month

Contact Now

Product information:

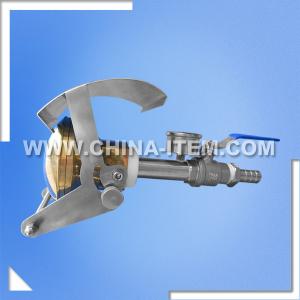

The spray nozzle is designed and manufactured in accordance with IEC60529 clause IPX3 and IPX4. It is used for the waterproof test of the electric appliance. Some parts of the enclosure can not be wet by the oscillating tube. Under this circumstance, the handheld spray nozzle is used by manual.

The difference between IPX3 and IPX4 is that the baffle should be removed in the IPX4 test.

Technical parameters:

No.

Item

Parameter

1

Water supply

Water flow rate is 50~150kpa clean water without inclusion.

2

Spray nozzle parameters

external diameter: Ф102mM

spherical diameter: SФ75.5mm

There is a middle hole and There are 24 holes in the internal circle of holes of which the included angle is 30°. There are 96 holes in the external circle of holes of which the included angle is 15°. 121 holes in total.

The hole diameter: Ф0.5mm

It is made of brass.

3

Water flow

10L/min±5%,Flow meter is adjustable

4

Reference

IEC60529 IPX3 IPX4, IEC60598-1, IEC 60335-1, IEC60745-1

5

Baffle

Removable

6

Pressure gauge

0~0.25MPa

7

Site requirements

Dedicated IP waterproof test room,The ground should be flat with illumination

With good function of inflow and drainage. Wall installation

Company introduction

Shenzhen Julixing Instruments Co., Ltd. are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.


If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
