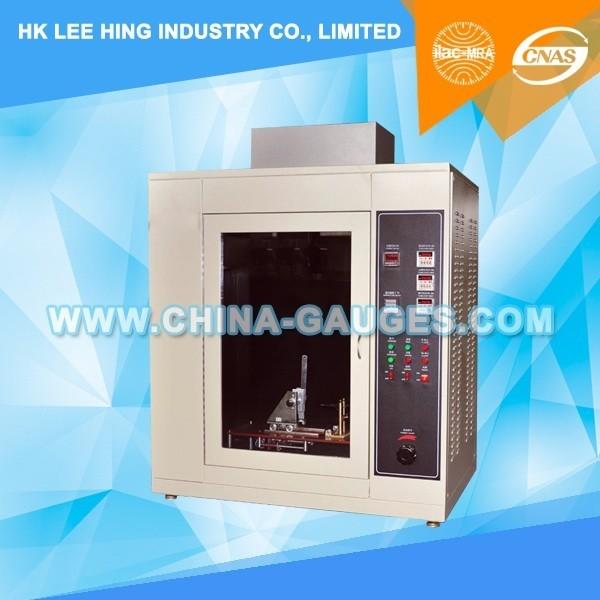

Glow Wire Tester

Brand Name : JLX

Model Number : LX-GW17

Certification : ISO 17025 CNAS & ILAC Test Report

Place of Origin : Made in China

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 200 per month

Delivery Time : 5 working days

Packaging Details : Export standard packing

Contact Now

Basic introduction:
1. Accord with IEC60695-2-10, UL746A.
2. Using electricity heating regulation material (Ni80 / Cr20) of resistanse wire (Φ 4 mm Ni-Cr alloy wire) to 0°C~ 1000°C in 1 min,then with 1.0 N vertically burn it 30s,measure the fire risk by product light-off or holde burning time ,also test light-off degree, light-off temperature (GWIT), flammability and combustible index (GWFI).
3. Suitable for lighting equipment, low voltage electric appliance,electrician instruments and material flammability testing, such as electrical and electronic products.

Specifications:

Model	LX-GW171	LX-GW172
Controller	Touch screen controller	Button controller
Glow wire	diameter 4mm±0.04mmNi/Cr(80/20), standard
Temperature range	500-1000°C ±2°C continus adjustable
Thermocouple	diameter 0.5mm Type K (Ni/Cr - Ni/Al), armored sheath can withstand temperature -40~ 1100°C
Searing Time	30s±0.1s (OMRON H5CN-XAN-Z digital timer, 0-9999s, presettable)
Light-off Time	0-999.9 s ± 0.1 s, automatic recording, manual timeout
Fireouttime	0-999.9 s ± 0.1 s, automatic recording, manual timeout
Ironing into depth	7mm ± 0.5 mm
Sample pressure	1N ± 0.2 N
Test speed	18±3mm/s
Test background	black background
Test process	automatic control, independent convulsions
Chamber	≥0.5m
Size	W1100mm×D700mm×H1300mm, exhaust hole Ø100mm can customize
Control	Using single chip microcomputer + touch screen control
Consult standard	IEC60695-2-10:2000,UL746A
Power Supply	800VA ,220V, 48-60Hz
