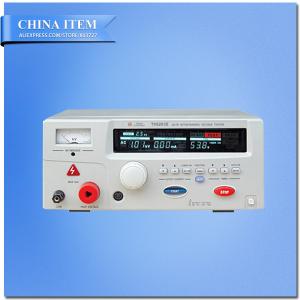

500VA 100mA AC Withstanding Voltage / Insulation Resistance Tester
Place of Origin : China
Brand Name : Julixing
Incoterms : CFR
Transportation : DHL Express
Product Style : Lab Equipment
MOQ : 1 set
Price : Contacts us
Packaging Details : Standard packing
Payment Terms : T/T,Western Union,MoneyGram,AliExpress
Supply Ability : 500 Set per month
Features
TH5201B AC withstanding voltage insulation resistance tester
High-brightness VFD display, eye-catching, beautiful
0-5kVAC / DC voltage output AC current 100mA test
Insulation resistance test voltage is 100V / 500V / 1000V third gear, insulation resistance test test range: 200 k-1.0 G (100V)
Measure to protect ground open detection function
Analog, digital voltage indication
Upper and lower limits of the window comparator, PASS / FAIL judgment output
Single high voltage output of the AC / DC switch without changing the output terminals
Timed test function, zero start and zero-crossing off
Four special test mode selection, increase security testing
DC auto discharge function (TH5201)
Quality noise suppression circuit, improving the reliability of operation
REMOTESecurity, signal input / output interface, RS-232C, user-friendly test operation, increased testing
Save the test conditions
| Model | TH5201B | ||
| Hipot test | |||
| Output voltage | AC | Voltage range | 0-2.5kV / 0-5kV(Digital display 5%., Analog meter 5% F.S ..) |
| Maximum output power | 500 VA | ||
| Voltage distortion | 5% | ||
| Voltage waveform | Power supply voltage waveform | ||
| HV ON/OFF | Zero start switch control | ||
| DC | Voltage range | 100V / 500V / 1000V (Digital display 5%., Analog meter 5% F.S ..) | |
| Maximum range power | 1W (1.0kv, 1.0mA) | ||
| Current test range | AC | 0 ~ 100mA | |
| Accuracy of current | 5% off the current limit | ||
| Resistance test range | Test range | 100V: 200 kΩ-1.0 GΩ 500V: 1 MΩ-5.0 GΩ 1000V: 2 MΩ-10 GΩ | |
| Accuracy | 2% (<100 M) 5% ( 100 M) | ||
| General parameters | |||
| Test time setting range | Timer ON: 0.2s-999s, the minimum resolution 0.1s | ||
| Testing time accuracy | 20ms | ||
| Parameter save | Setting parameters are automatically saved (need at least after one measurement), the next boot automatically restore. | ||
| Size | 320 * 140 * 300 mm | ||
| Weight | 16 kg | ||
| Interface | |||
| REMOTE Control (Front Panel) | START, STOP, START-ENABLE, HV ON indication | ||
| Signal input / output interface | Status output: PASS, U-FAIL, L-FAIL, PROTECTION, READY, TEST, HV-ON control: START, STOP, ENABLE, INTERLOCK special test mode setting: double effect, by keeping the instant test, not by keeping. | ||
| Communication Interface | RS232C | ||
Shenzhen Julixing Instruments Co., Ltd. are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
We would appreciate your comments on the layout design, presentation or other aspects of our website.
Website: http://www.china-gauges.com
Contacts: Eason Wang
E-mail: sales@china-gauges.com
TEL: +86-755-33168386
FAX: +86-755-61605199
Phone: +86-13751010017
SKYPE: carlisle.wyk
TradeManager: cn112384072
Address: 28F Huichao Technology BLDG., Jinhai Rd., Xixiang, Bao'an District, Shenzhen, Guandong, China
ZIP: 518102
Website: http://www.china-gauges.com/
|
