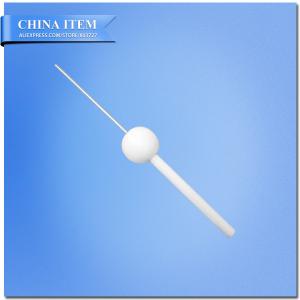

Length 100 mm * Diameter 4 mm Test Rod of EN IEC 60065 cl. 9.1.3
Place of Origin : China
Brand Name : Julixing
Incoterms : CFR
Transportation : DHL Express
Product Style : Lab Equipment
MOQ : 1 set
Price : Contacts us
Packaging Details : Standard packing
Payment Terms : T/T,Western Union,MoneyGram,AliExpress
Supply Ability : 500 Set per month
Basic Introduction:
According to: IEC 60065:9.1.3, GB 8898:9.1.3, EN 61010-1, UL 3101-1, and CSA 1010-1.
Openings of the enclosure
Technical parameters:
1. Rod length: 100 mm
2. Rod diameter: 4 mm
3. Circular-baffle diameter: 35 mm
4. Handle diameter: 10 mm
5. Handle length: 100 mm
Application:
The apparatus shall be so designed that suspended foreign bodies cannot become HAZARDOUS LIVE, when introduced through ventilation or other holes.
Compliance is checked by applying to the holes a metal test pin having a diameter of 4 mm and a length of 100 mm. The test pin is suspended freely from one end, the penetration is limited to the length of the test pin.
Note : The test pin shall not become HAZARDOUS LIVE.
Shenzhen Julixing Instruments Co., Ltd. are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
We would appreciate your comments on the layout design, presentation or other aspects of our website.
Website: http://www.china-gauges.com
Contacts: Eason Wang
E-mail: sales@china-gauges.com
TEL: +86-755-33168386
FAX: +86-755-61605199
Phone: +86-13751010017
SKYPE: carlisle.wyk
TradeManager: cn112384072
Address: 28F Huichao Technology BLDG., Jinhai Rd., Xixiang, Bao'an District, Shenzhen, Guandong, China
ZIP: 518102
Website: http://www.china-gauges.com/
|
