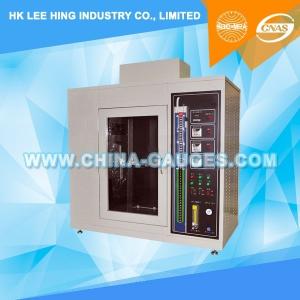

Horizontal and Vertical Flammability Tester
Brand Name : JLX
Model Number : LX-HV19
Certification : ISO 17025 CNAS & ILAC Test Report
Place of Origin : Made in China
MOQ : 1
Payment Terms : T/T, Western Union
Supply Ability : 200 per month
Delivery Time : 5 working days
Packaging Details : Export standard packing
Product introduction:
Horizontal and Vertical Flammability Tester is suitable for measuring and evaluating the combustion characteristics of plastic materials. It is designed and made based on the America UL94 standard the combustion characteristics’ testing of plastic materials used for device and equipment parts. It tests the horizontal and straight combustion characteristics of plastic parts used for device and equipment, and equipped with gas flow meter to adjust size of flame. It use motor driving mode to make the operation easy andsafe.
Specification:
| Cabinet capacity | ≥0.5 cubic meters, with glass watch door |
| Ignite time | 0~99 minutes and 99 seconds can be set |
| After flame time | 0~99 minutes and 99 seconds can be set |
| Residual burn time | 0~99 minutes and 99 seconds can be set |
| Timer | 0~99 minutes and 99 seconds can be adjusted, burning time can be set, and |
| Burning angle | 20°,45°,90°(equal to 0°) can be adjusted |
| Burner size parameter | Nozzle diameter Ø9.5±0.3mm, nozzle effective length is 100±10mm, with air adjust |
| Flame height | It can be adjusted from 20mm to 175mm according to the standard requirement. |
| Product feature | It is equipped with lighting device, air extracting device, gas flow regulating valve, |
| Power | AC 220V, 50 Hz |
