CEE 7 Plugs and Socket Outlets Gauge

Brand Name : JLX

Model Number : LX-CEE7

Certification : ISO 17025 CNAS & ILAC Test Report

Place of Origin : Made in China

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 200 per month

Delivery Time : 5 working days

Packaging Details : Export standard packing

Standard : CEE 7

Contact Now

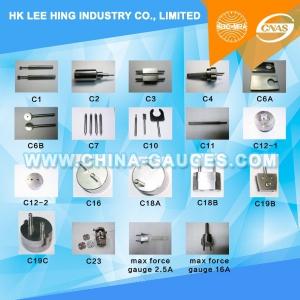

CEE 7 Plugs and Socket Outlets Gauge

NO	Figure No.	Description
1	CEE7/C1	10/16A 250V two-pole socket-outlets Gauges c1 for size of entry holes for plug pins
2	CEE7/C2A.B	10/16A 250V two-pole socket-outlets and two-pole plugs with pin-type earthing-contact Gauges c2 for minimum opening of contact tubes
3	CEE7/C3	10/16A 250V two-pole socket-outlets Gauge c3 for acceptance of two-pole plugs
4	CEE7/C4	10/16A 250V two-pole socket-outlets with side earthing-contacts Gauge c4 for acceptance of two-pole plugs with side earthing contacts
5	CEE7/C6A.B	10/16A 250V two-pole fixed socket-outlets Gauges c6 for fixing holes or slots
6	CEE7/C7A.B.C.D	10/16A 250V two-pole socket-outlets Gauges c7 for distance to point of first contact
7	CEE7/C8	10/16A 250V two-pole socket-outlets Gauge c8 for wiring channel
8	CEE7/C9A.B	2.5A 250V and 10/16A250V two-pole plugs and 10/16A 250V two-pole socket-outlets with pin-type earthing-contact Gauges c9 for pin diameter
9	CEE7/C10A.B	10/16A 250Vtwo-pole plugs Gauges c10 for pin spacing
10	CEE7/C11	10/16A 250V two-pole socket-outlets and two-pole plugs with pin-type earthing-contact Gauge c11 for maximum opening of contact tubes
11	CEE7/C12	10/16A 250V two-pole plugs with side earthing-contacts Gauge c12 for interchangeability
12	CEE7/C13	2.5A 250V two-pole plugs for class ii appliances Gauge for interchangeability
13	CEE7/C14	10/16A 250V two-pole flush-type socket-outlets for screw fixing Gauge for dimensions of mounting boxes
14	CEE7/C15	10/16A 250V two-pole plugs without earthing contact Gauge for non-interchangeability with two-pole plugs with earthing contact
15	CEE7/C16	10/16A 250V two-pole socket-outlets with side earthing-contacts Gauge for non-acceptance of two-pole plugs wihout earthing contact
16	CEE7/C18	10/16A 250V two-pole socket-outlets without earthing contact Gauge for checking impossibility of single-pole insertion of plugs
17	CEE7/C19A.B.C	2.5A 250V and 10/16A 250V two-pole plugs Gauges for checking impossibility of single-pole insertion of plugs into socket-outlets
18	CEE7/C19a	2.5A 250V and 10/16A 250V two-pole plugs Gauges for checking impossibility of single-pole insertion of plugs into socket-outlets
19	CEE7/C20	Device for testing non-solid pins
20	CEE7/C21	Device for checking the resistance to lateral strain of 10/16A 250V two-pole fixed socket-outlets
21	CEE7/C22	Splash apparatus
22	CEE7/C23	Device for measuring the contact pressure of earthing contacts of 10/16A 250V two-pole socket-outlets with side earthing-contacts
23	CEE7/C24	Apparatus for breaking capacity and normal operation tests
24	CEE7/C25	Circuit diagrams for breaking capacity and normal operation tests
25	CEE7/C26	Apparatus for checking the withdrawal force
26	CEE7/C27	Apparatus for testing the cord anchorage
27	CEE7/C28	Apparatus for flexing test
28	CEE7/C29	Impact-test apparatus
29	CEE7/C30	Tumbling barrel
30	CEE7/C31	Apparatus for impact test at low temperature
31	CEE7/C32	Arrangement for compression test
32	CEE7/C33	Apparatus for abrasion test on insulating collars of plug pins
33	CEE7/C34	Ball-pressure apparatus
34	CEE7/C35	Apparatus for pressure test on plugs and portable socket-outlets
35	CEE7/C36	Hot mandrel apparatus
36	CEE7/C37	Arrangement and dimensions of the electrodes for the tracking test
37	CEE7/C104
38	CEE7/C105/C1A
39	CEE7/C106/C3A
40	IEC 60884-Fig9	Gauge for checking non-accessibility of live parts, through shutters
41	IEC 60884-Fig10	Gauge for checking non-accessibility of live parts, through shutters and of live parts of socket-outlets with increased protection
