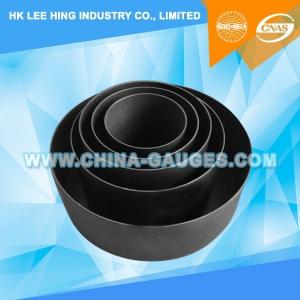

IEC60335-2-9 clause 3 figure 104 Vessel for Testing Induction Hotplates
Brand Name : JLX
Model Number : LX-DT05
Certification : ISO 17025 CNAS & ILAC Test Report
Place of Origin : Made in China
MOQ : 1
Payment Terms : T/T, Western Union
Supply Ability : 200 per month
Delivery Time : 5 working days
Packaging Details : Export standard packing
Standard : IEC60335
Main parameter:

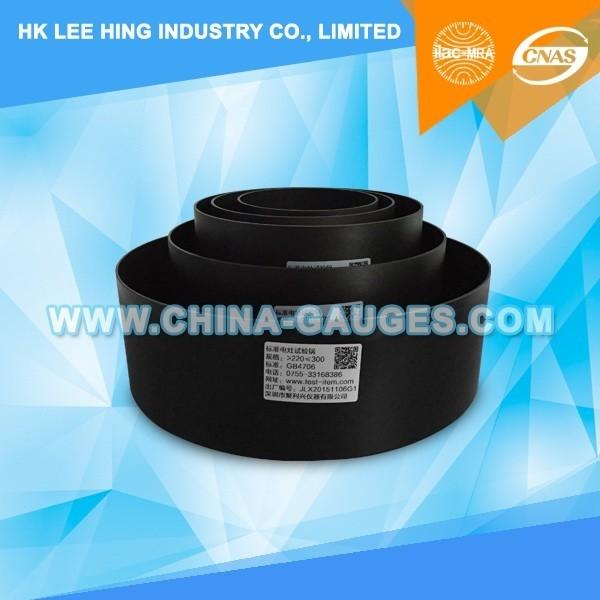

one set with 5 pcs, the diameter is: 110 mm, 145mm, 180mm, 220mm, 300mm
Base and wall thickness: 2mm±0.5mm
The vessel is made of low carbon steel having maximum carbon content of 0.08%

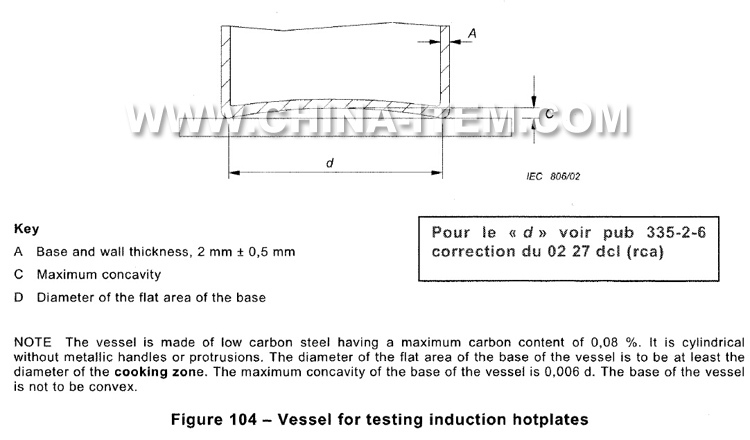

NOTE: The vessel is made of low carbon steel having a maximum carbon content of 0,08 %. It is cylindrical without metallic handles or protrusions. The diameter of the flat area of the base of the vessel is to be at least the diameter of the cooking zone. The maximum concavity of the base of the vessel is 0,006 d. The base of the vessel is not to be convex.
Vessel for testing induction hotplates ( IEC60335-2-9 clause 3 figure 104)
| Diameter of cooking zone(mm) | Approximate Dimension | |||
| Diameter (mm) | Wall highly (mm) | Bottom thickness (mm) | Wall thickness (mm) | |
| ≤110 | 110 | 140 | 8 | 2 |
| >110≤145 | 145 | 140 | 8 | 2 |
| >145≤180 | 180 | 140 | 9 | 2 |
| >180≤220 | 220 | 120 | 10 | 2 |
| >220≤300 | 300 | 100 | 10 | 2 |
