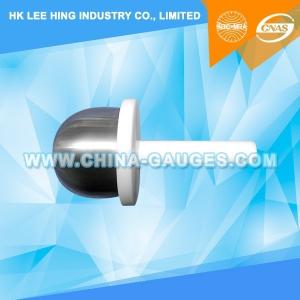

75mm Test Probe with Hemispherical End of IEC60335
Brand Name : JLX
Model Number : LX-7510
Certification : ISO 17025 CNAS & ILAC Test Report
Place of Origin : Made in China
MOQ : 1
Payment Terms : T/T, Western Union
Supply Ability : 200 per month
Delivery Time : 5 working days
Packaging Details : Export standard packing
Standard : IEC60335
Probe diameter : 75mm
Probe length : 50mm
Standard: IEC60335-2-30, IEC60335-2-24.
Diameter: 75mm, Confirm to the IEC60335-2-24 clause21.102. Sphere is hardened steel.
Compliance is checked by applying a 75 mm ± 0,5 mm diameter sphere without appreciable force in an attempt to touch the lamp with the lamp cover in place.
Technical parameters:
Probe diameter: 75mm
Probe length: 50mm
Baffle plate diameter: 100mm
Baffle plate thickness: 10mm
