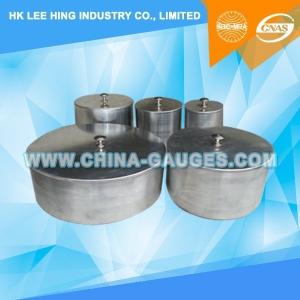

IEC60335-2-9 figure 103 Vessel for Testing Hotplates
Brand Name : JLX
Model Number : LX-LG05
Certification : ISO 17025 CNAS & ILAC Test Report
Place of Origin : Made in China
MOQ : 1
Payment Terms : T/T, Western Union
Supply Ability : 200 per month
Delivery Time : 5 working days
Packaging Details : Export standard packing
Standard : IEC60335
IEC60335-2-9 Figure 103 Test Vessels
1. The vessels are made of unpolished commercial quality aluminium, have a flat bottom and are covered with a lid.
2. The vessels are met the requirements of IEC 60335-2-9 Figure 103, GB4706.14 Figure 103, EN 30-1-1 2008 (E) Annex C2, GB4706.22 Figure 101, and GB16410-2007 Figure 7 etc standards.
3. Normal operation: Hotplates, other than induction hotplates, are operated with vessels containing water. Controls are adjusted to their highest setting untill the water boils and then adjusted so that the water simmers. water is added to maintain the level during boiling.
4. Parameters:
| Diameter of cooking zone mm | Approximate dimension | ||
| a mm | b mm | c mm | |
| ≤110 | 110 | 140 | 8 |
| > 110 ≤ 145 | 145 | 140 | 8 |
| > 145 ≤ 180 | 180 | 140 | 9 |
| > 180 ≤ 220 | 220 | 120 | 10 |
| > 220 ≤ 300 | 300 | 100 | 10 |
NOTE: The maximum concavity of the vessel is to be not more than 0,05 mm. The base of the vessel is not to be convex.
