IEC 60335-2-9 Figure 102 Test Load for Testing Rotating Spits
Brand Name : JLX
Model Number : LX-FZ02
Certification : ISO 17025 CNAS & ILAC Test Report
Place of Origin : Made in China
MOQ : 1
Payment Terms : T/T, Western Union
Supply Ability : 200 per month
Delivery Time : 5 working days
Packaging Details : Export standard packing
Standard : IEC60335
IEC 60335-2-9 Figure 102 Test Load for Testing Rotating Spits

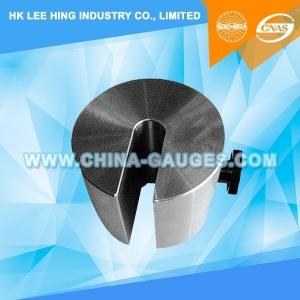

The testing rotating spits load complies with IEC60335-2-9 Figure 102, the equivalent mass is about 4.5kg, made of stainless steel.
Size: Diameter 100 * 85 mm

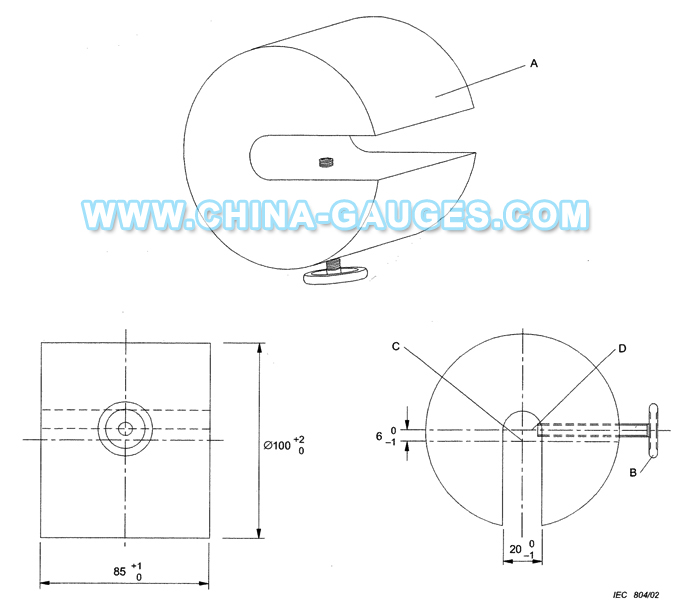

Key
A Load, mass approximately 4,5 kg
B Fixing screw
C Axis of load
D Axis of fixing screw
NOTE: The load is positioned on the rotary spit so that the fixing screw contacts the diameter of the spit.
