UL 498 Plugs and Socket Outlets Gauge
Brand Name : JLX
Model Number : LX-UL498
Certification : ISO 17025 CNAS & ILAC Test Report
Place of Origin : Made in China
MOQ : 1
Payment Terms : T/T, Western Union
Supply Ability : 200 per month
Delivery Time : 5 working days
Packaging Details : Export standard packing
Standard : UL 498

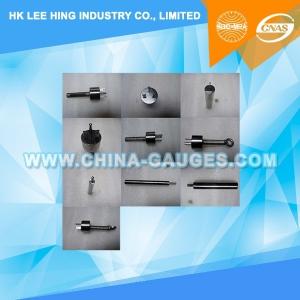

UL 498 Plugs and Socket Outlets Gauge
1. Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to UL 498 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.
2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC;Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.
3. Specifications:
| 1 | UL498-figure9.1 | Articulate probe with web stop | |||
| 2 | UL498-figure10.1 | Prode | |||
| 3 | UL498-figure31.1 | Flat prode | |||
| 4 | UL498-figure69.1 | Reference plug | |||
| 5 | UL498-figure94.1 | Impoper insertion test blades | |||
| 6 | UL498-figure105.1 | Test plug | |||
| 7 | UL498-figure105.2 | Test blade | |||
| 8 | UL498-figure118.1 | Receptacle test fixture | |||
| 9 | UL498-figure118.3 | Push out tool | |||
| 10 | UL498-figure118.5 | Bridge | |||
| 11 | UL498-figure119.1 | Test pin A | |||
| 12 | UL498-figure119.2 | Test pin B | |||
| 13 | UL498-figure119.3 | 57g ground pin | |||
| 14 | UL498-figure119.4 | 113g ground pin | |||
| 15 | UL498-figure129.2 | No.14AWG test pin | |||
| 16 | UL498-figure132.1 | Test probe | |||
| 17 | UL498-fig132.2 | Testprobe | |||
| 18 | UL498-figure144.2 | Fixture for assembly security test | |||
| 19 | UL498-figureSD13.2 | Over size ground pin | |||
