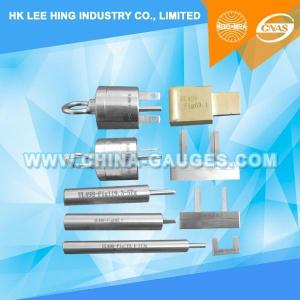

UL 498 2012 Plugs and Receptacles Gauges
Brand Name : JLX
Model Number : LX-UL498
Certification : ISO 17025 CNAS & ILAC Test Report
Place of Origin : Made in China
MOQ : 1
Payment Terms : T/T, Western Union
Supply Ability : 200 per month
Delivery Time : 8~10 working days
Packaging Details : Export standard packing
Standard : UL 498
UL 498 : 2012 Plugs and Receptacles Gauges
1. Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to UL 498:2012 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.
2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC;Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.
3.Specifications:
| Item | Figure No. | Describe | Quantity |
| 1 | UL498-2012 Figure 9.1 | Articulate probe with web stop | 1 |
| 2 | UL498-2012 Figure 10.1 | Probe | 1 |
| 3 | UL498-2012 Figure 31.1 | Flat probe | 1 |
| 4 | UL498-2012 Figure 73.1 | Reference plug | 1 |
| 5 | UL498-2012 Figure 73.2 | Typical test apparatus | 1 |
| 6 | UL498-2012 Figure 98.1 | Improper insertion test blades | 2 |
| 7 | UL498-2012 Figure 109.1 | Test plug | 2 |
| 8 | UL498-2012 Figure 109.2 | Test blade | 1 |
| 9 | UL498-2012 Figure 122.1 | Receptacle test fixture | 1 |
| 10 | UL498-2012 Figure 122.3 | Push out tool | 1 |
| 11 | UL498-2012 Figure 122.5 | Bridge | 1 |
| 12 | UL498-2012 Figure 123.1 | Test pin A | 1 |
| 13 | UL498-2012 Figure 123.2 | Test pin B | 1 |
| 14 | UL498-2012 Figure 123.3 | 57g ground pin | 1 |
| 15 | UL498-2012 Figure 123.4 | 113g ground pin | 1 |
| 16 | UL498-2012 Figure 133.2 | No.14AWG test pin | 1 |
| 17 | UL498-2012 Figure 136.1 | Small test probe | 1 |
| 18 | UL498-2012 Figure 165.2 | Fixture for assembly security test | 1 |
| 19 | UL498-2012 Figure SD 5.1 | Standard grounding pin | 1 |
| 20 | UL498-2012 Figure SD 13.1 | Standard grounding pin | 1 |
| 21 | UL498-2012 Figure SD 13.2 | Over size ground pin | 1 |
