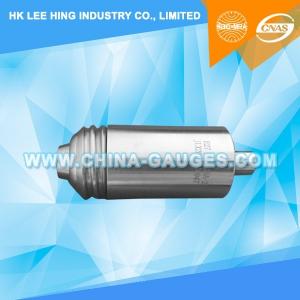

IEC60061-3: 7006-25A-2 E27 Go Gauge for Lampholders
Brand Name : JLX
Model Number : 7006-25A-2
Certification : ISO 17025 CNAS & ILAC Test Report
Place of Origin : Made in China
MOQ : 1
Payment Terms : T/T, Western Union
Supply Ability : 200 per month
Delivery Time : 5 working days
Packaging Details : Export standard packing
Standard : IEC60061
IEC60061-3: 7006-25A-2 E27 Go Gauge for Lampholders

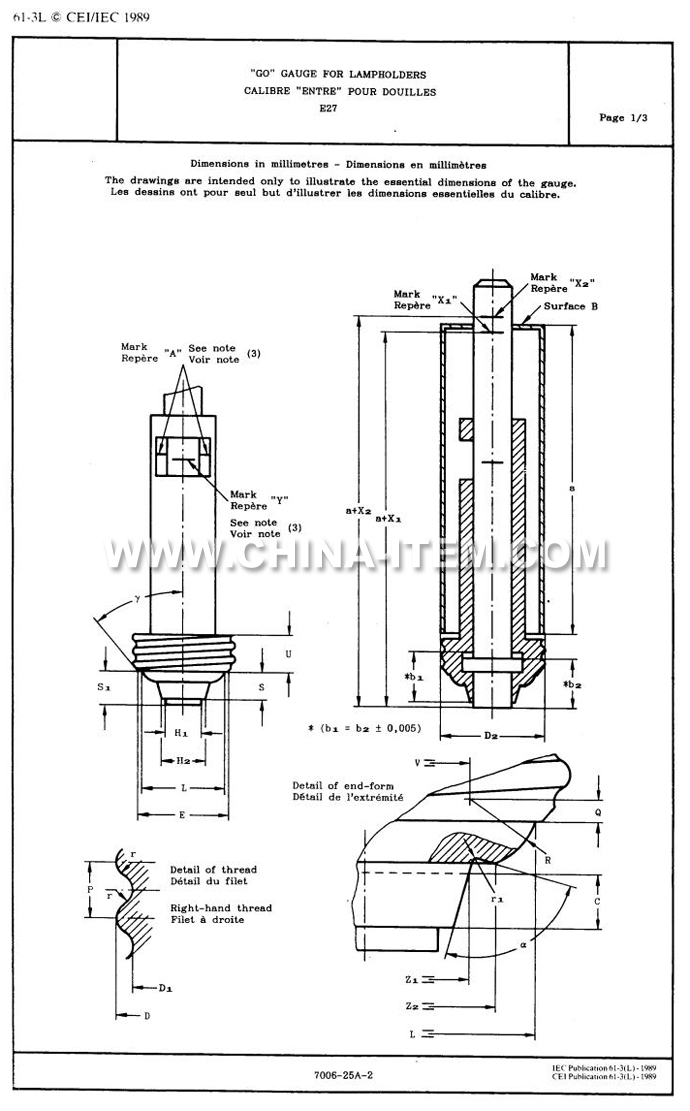

The drawings are intended only to illustrate the essential dimensions of the gauge.
(1) Dimension S1 applies when the plunger is fully extended.
(2) Dimension D2 is the outside diameter at the open end of the sleeve.
(3) When the plunger is fully retracted, marks A and Y shall coincide and the end of the plunger shall be co-planar with the end of the gauge.
See dimensions b1 and b2.
PURPOSE: To check:
a) The minimum dimensions of the lampholder screw thread according to sheets 7004-21 and 7004-27.
b) Dimension X according to sheet 7005-20.
c) The mechanical compatibility of the lampholder with respect to lamps having adverse dimensions.
TESTING: It shall be possible to screw the threaded part of the gauge into the lampholder without using undue force (for the torque to be applied see Publication 238, Sub-clause 4.4).
When the gauge has been screwed in as far as it will go, mark Y on the plunger shall be co-planar with mark A on the shaft.
The sleeve is then placed over the shaft of the gauge with its open end resting on the top edge of the screw shell of the holder. With the sleeve in this position, the plunger is pushed down as far as it will go.
Surface B of the gauge shall then lie between the marks X1 nad X2 on the plunger or be co-planar with either of them; it shall not lie beyond them.
