IEC60061-3: 7006-30A-1 Plug Gauge for Lampholder E14 with Candle Shaped Shaft for Candle Lamps for Testing Contact Makin
Brand Name : JLX
Model Number : 7006-30A-1
Certification : ISO 17025 CNAS & ILAC Test Report
Place of Origin : Made in China
MOQ : 1
Payment Terms : T/T, Western Union
Supply Ability : 200 per month
Delivery Time : 5 working days
Packaging Details : Export standard packing
Standard : IEC60061
IEC60061-3: 7006-30A-1 Plug Gauge for Lampholder E14 with Candle Shaped Shaft for Candle Lamps for Testing Contact Making
This gauge is to be used for testing contact making in lampholders with candle shaped shafts designed
especially to take candle lamps only.

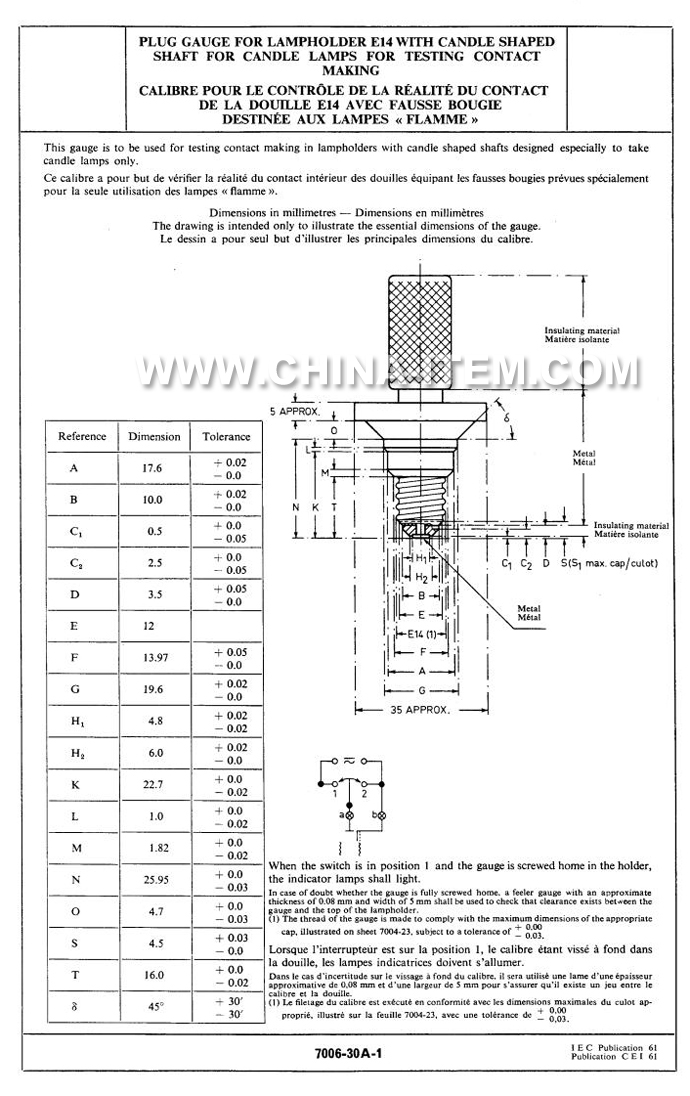

The drawing is intended only to illustrate the essential dimensions of the gauge.
When the switch is in position 1 and the gauge is screwed home in the holder, the indicator lamps
shall light.
In case of doubt whether the gauge is fully screwed home, a feeler gauge with an approximate thickness
of 0.08 mm and width of 5 mm shall be used to check that clearance exists between the gauge and the
top of the lampholder.
(1) the thread of the gauge is made to compty with the maximum dimensions of the appropriate cap,
illustrated on sheet 7004-23, subject to a tolerance of +0.00 -0.03.
HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Plugs and Socket Outlet Gauge, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
