b22 go no go gauges of finished lamp caps
Brand Name : JLX
Model Number : LX-B22GN
Certification : ISO 17025 CNAS & ILAC Test Report
Place of Origin : Made in China
MOQ : 1
Payment Terms : T/T, Western Union
Supply Ability : 200 per month
Delivery Time : 5 working days
Packaging Details : Export standard packing
Standard : IEC60061

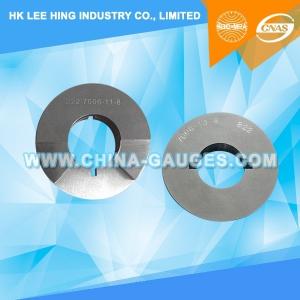

B22 Go No Go Gauge of Finished Lamp Caps Include:
1) IEC60061-3 7006-11-8 B22 Go Gauges for Caps on Finished Lamps;
Purpose:
To check dimensions A max., N min. D1 min., D1 max., and the diametrical position of the pins of caps B22 on finished lamps.
Testing:
The cap shall enter the gauge until the pins have passed through the slot Q. The cap is then turned through a small angle and is pressed so that the pins are in close contact with surface S.
In this position, the contact making surface shall not be below surface X nor shall it project beyond surface Z.
2) IEC60061-3 7006-10-8 B22 No Go Gauges for Caps on Finished Lamps;
Purpose:
To check dimension A in, of caps B22 on finished lamps.
Testing:
Caps on finished lamps shall be assumed to be correct if the gauge does not pass over the cap by its own weight.
