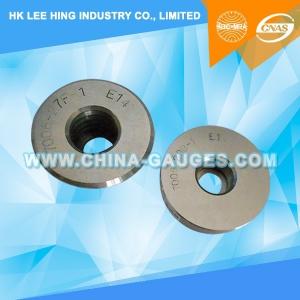

e14 go and no go gauges of finished lamp caps
Brand Name : JLX
Model Number : LX-E14GN
Certification : ISO 17025 CNAS & ILAC Test Report
Place of Origin : Made in China
MOQ : 1
Payment Terms : T/T, Western Union
Supply Ability : 200 per month
Delivery Time : 5 working days
Packaging Details : Export standard packing
Standard : IEC60061
E14 Go No Go Gauge of Finished Lamp Caps Include:
1) IEC60061-3 7006-27F-1 Go Gauge for E14 Caps on Finished Lamps;
Purpose:
To check the maximum dimensions of the screw thread and dimension T1 minimum of E14 caps on finished lamps.
Testing:
When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact shall be co-planar with, or project beyond surface X.
2) IEC60061-3 7006-28B-1 No Go Gauge for E14 Caps on Finished Lamps;
Purpose:
To check the minimum outside (major) diameter of the screw thread, dimension d, of caps E14 on finished lamps.
Testing:
When the gauge is placed over the thread of the cap on a finished lamp, held cap uppermost, the centre contact shall not project beyond surface X.
Only the weight of the gauge itself shall be used in the test.
