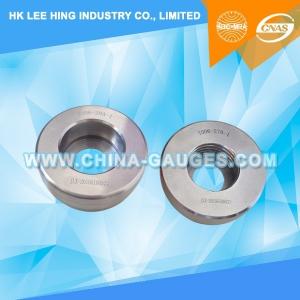

E27 Go No Go Gauges of Finished Lamp Cap
Brand Name : JLX
Model Number : LX-E27GN
Certification : ISO 17025 CNAS & ILAC Test Report
Place of Origin : Made in China
MOQ : 1
Payment Terms : T/T, Western Union
Supply Ability : 200 per month
Delivery Time : 5 working days
Packaging Details : Export standard packing
Standard : IEC60061
E27 Go No Go Gauges of Finished Lamp Cap Include:
1) IEC60061-3 7006-27B-1 Go Gauges for E27 Caps on Finished Lamps;
PURPOSE:
To check the maximum dimensions of the screw thread and dimension T1 minimum of caps on finished lamps shown on sheet 7004-21.
TESTING:
When the cap on a finished lamp has been screwed into the gauges as far as it will go, the centre contact shall be coplanar with, or project beyond surface X.
2) IEC60061-3 7006-28A-1 No Go Gauges for E27 Caps on Finished Lamps;
Purpose:
To check the minimum outside (major) diameter of the screw thread, dimension "d" of E27 caps on finished lamps shown on sheet 7006-21.
Testing:
When the gauge is placed over the thread of the cap on a finished lamp, held cap uppermost, the centre contact shall not project beyond surface "X". Only the weight of the gauge itself shall be used in the test.
HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Plugs and Socket Outlet Gauge, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
