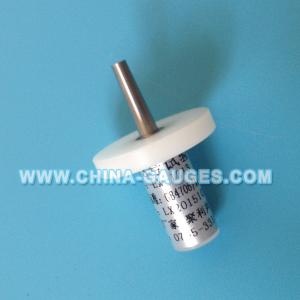

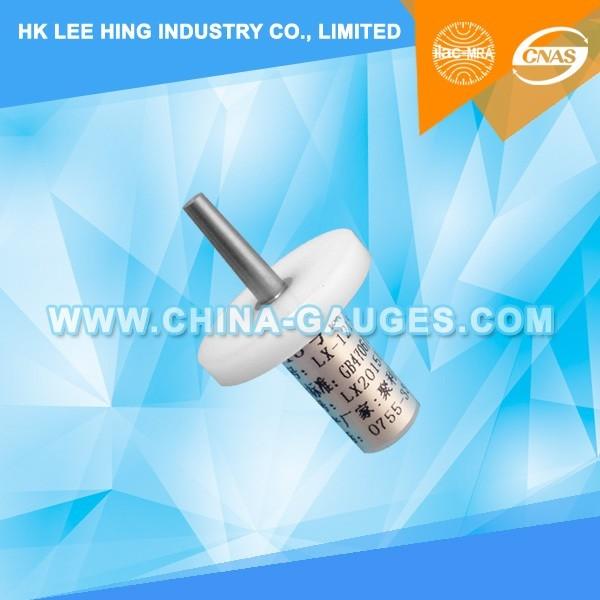

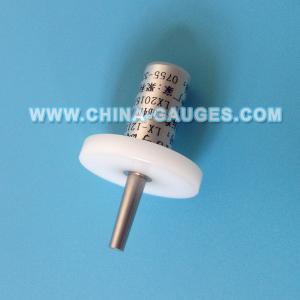

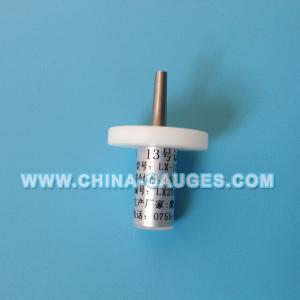

IEC61032 Test Probe 13 Short Test Pin
Brand Name : JLX
Model Number : LX-1213
Certification : ISO 17025 CNAS & ILAC Test Report
Place of Origin : Made in China
MOQ : 1
Payment Terms : T/T, Western Union
Supply Ability : 200 per month
Delivery Time : 5 working days
Packaging Details : Export standard packing
Standard : IEC 61032
Meets IEC CSA & UL requirements Test Probe 13 of Short Test Pin - Fig. 9 of EN 61032
This Test Probe Pins (Figure 9 - Test probe 13 of IEC 61032) is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (see IEC60536).
Conforms to:
Standard IEC 61032, IEC 60065, IEC 60335-1, IEC 60950, IEC 60601, IEC 60745 and UL etc.
Technical Parameter:
Test probe diameter:3 mm
Test probe length:15 mm
Baffle plate thickness:4 mm
Baffle plate diameter:25 mm
Handle length:20 mm
Handle diameter:10 mm
