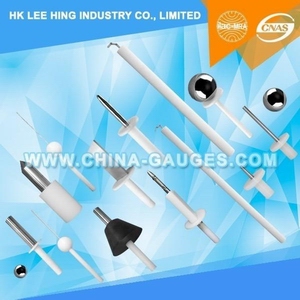

IEC 61032 Test Probes for Verification and Testing The Protection Against Access to Hazardous Parts

HK LEE HING INDUSTRY CO., LIMITED

City: Shenzhen

Province/State: Guangdong

Country/Region: China

Contact Person: Nina She

View Contact Details

IEC 61032 Test Probes for Verification and Testing The Protection Against Access to Hazardous Parts

Brand Name : JLX

Model Number : LX-61032

Certification : ISO 17025 CNAS & ILAC Test Report

Place of Origin : Made in China

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 200 per month

Delivery Time : 5-8 working days

Packaging Details : Aluminum Box

Standard : IEC 61032

Contact Now

Product Description
Model Describe Reference standard Specification
LX1201 IEC 61032 Figure 1 - Test probe A

IEC60529

IEC61032

Ball diameter: 50 mm

Baffle plate diameter: 45 mm

Baffle plate thickness: 4 mm
Handle diameter: 10 mm
Handle length: 100 mm
Material: Nylon + stainless steel
LX-1202 IEC 61032 Figure 2 - Test probe B

IEC60529

IEC61032

IEC60335

IEC60884

IEC60745

IEC60045

IEC60950

IEC60238

IEC60601

IEC60968

IEC61010

IEC60065

Knurled finger diameter: 12 mm
Knurler finger length: 80 mm
Baffle plate diameter: 50 mm
Baffle plate length: 100 mm
Baffle thickness: 20 mm
LX-1203 IEC 61032 Figure 3 - Test probe C

IEC61032

IEC60529

Test probe length: 100 mm

Test probe diameter: 2.5 mm

Dam-sphere diameter: 35 mm

Handle diameter: 10 mm

Handle length: 100 mm

Material: Nylon + hardened steel

LX-1204 IEC 61032 Figure 4 - Test probe D IEC61032
IEC60529

Test probe length: 100 mm

Test probe diameter: 1 mm

Dam-sphere diameter: 35 mm

Handle diameter: 10 mm

Handle length: 100 mm

Material: Nylon + hardened steel

LX-B500 IEC 61032 Figure 5 – Test probe 1 IEC61032

Diameter: 50 mm

Weight: 500 g

LX-B015 IEC 61032 Figure 6 – Test probe 2 IEC61032 Diameter: 12.5 mm
Weight: 15 g
LX-1211 IEC 61032 Figure 7 – Test probe 11 IEC61032
IEC60065

IEC60335-1

IEC60884-1

IEC60238

IEC60950

IEC61010

Nodular Finger length: 80 mm

Nodular Finger diameter: 12 mm

Dam-board diameter: 50 mm

Dam-board thickness: 5 mm

Material: Nylon and stainless steel

LX-1213 IEC 61032 Figure 9 – Test probe 13

IEC60065

IEC60335-1

IEC60950

IEC61302

IEC60601

IEC60745

Test probe diameter: head 3 mm, tail 4 mm

Test probe length: 15 mm

Dam-board diameter: 25 mm

Dam-board thickness: 5 mm

Material: Handle is made of Nylon, tip is stainless steel

LX-1212 IEC 61032 Figure 8 – Test probe 12 IEC61032

Test probe diameter: 4 mm

Test probe length: 50 mm

Dam-board diameter: 25 mm

Dam-board thickeness: 4 mm

Material: Handle is made of Nylon, tip is stainless steel

LX-1219 IEC 61032 Figure 13 – Test probe 19 (small finger probe Φ 5.6) IEC61032
EN71
ASTM F963

Knurled finger diameter: φ5.6 mm

Head radius: 2.8 mm

Knurled finger length: 44 mm(Three knurls,16.7 mm knurl)

Material: Nylon and stainless steel

LX-1218 IEC 61032 Figure 12 – Test probe 18 (small finger probe Φ 8.6) IEC61032
EN71
ASTM F963

Knurled finger diameter: φ8.6 mm

Head radius: 4.3 mm

Knurled finger length: 57.9 mm (Three knurls,19.3 mm knurl)

Material: Nylon and stainless steel

LX-1231 IEC 61032 Figure 14 – Test probe 31 IEC61032

Test Rod diameter: φ25 mm

Rigid Finger length: 80 mm

Dam-board diameter: 60-110 mm

LX-1232 IEC 61032 Figure 15 – Test probe 32 IEC61032 Test Rod diameter: φ25 mm
Dam-board diameter: 50 mm
LX-1241 IEC 61032 Figure 16 – Test probe 41 IEC61032

Test Rod diameter: 30 mm

Rigid Finger length: 80 mm

Handle diameter: 50 mm

Handle length: 80 mm

LX-1243 IEC 61032 Figure 17 – Test probe 43 IEC61032 Bar wide: 50 mm
Thickness: 5 mm
