IEC/EN 60061-3 7006-27A-2 E10 "GO" Gauge for Caps, EN/IEC60061 E10 Go Gauge of 7006-27A-2
Place of Origin : China
Brand Name : Julixing
Incoterms : DAP
Transportation : DHL Express
Product Style : Lab Equipment
MOQ : 1 set
Price : Contacts us
Packaging Details : Standard packing
Payment Terms : T/T,Western Union,MoneyGram,AliExpress
Supply Ability : 500 Set per month

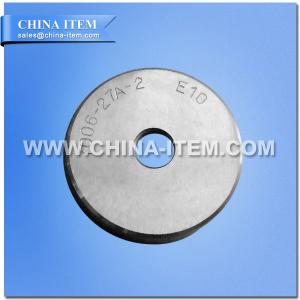

E10 Go Gauge for caps on finished lamps according to IEC60061 7006-27A-2
The drawing is intended only to illustrate the essential dimensions of the gauge.
For details of cap E10, see sheet 7004-22.
The sharp parts of the edges of the the thread shall be broken with a radius of 0.1 to 0.2 mm.
Purpose: To check the maximum dimensions of the screw thread and dimension T min. of E10 caps on finished lamps.
Testing: When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact shall be co-planar with, or project beyond the surface of the gauge.
Shenzhen Julixing Instruments Co., Ltd. are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
We would appreciate your comments on the layout design, presentation or other aspects of our website.
Website: http://www.china-gauges.com
Contacts: Eason Wang
E-mail: sales@china-gauges.com
TEL: +86-755-33168386
FAX: +86-755-61605199
Phone: +86-13751010017
SKYPE: carlisle.wyk
TradeManager: cn112384072
Address: 28F Huichao Technology BLDG., Jinhai Rd., Xixiang, Bao'an District, Shenzhen, Guandong, China
ZIP: 518102
Website: http://www.china-gauges.com/
|
