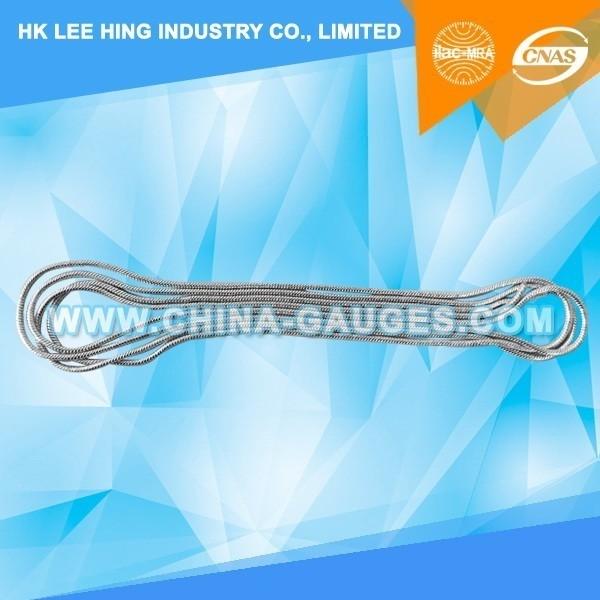

IEC60598-1 Test Chain
Brand Name : JLX
Model Number : LX-LG05
Certification : ISO 17025 CNAS & ILAC Test Report
Place of Origin : Made in China
MOQ : 1
Payment Terms : T/T, Western Union
Supply Ability : 200 per month
Delivery Time : 5 working days
Packaging Details : Export standard packing
Standard : IEC60598
Standards: IEC60598-1 clause 4.26.3
Chain Length: 1.30 meters
Chain Diameter: 2 mm
Resistance: 2.5Ω/m±20%
Purpose: Used for lighting without insulation , accessible and opposite SELV part accidental short circuit protection test.

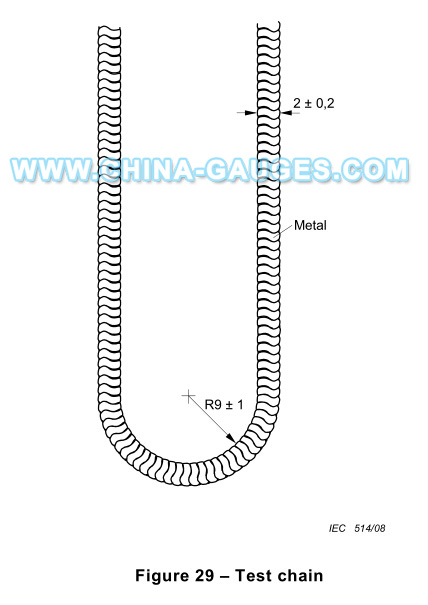

Test chain of sufficient length of an uncoated metal, having links in accordance with IEC60598 Figure 29 and made of 63 % Cu/37 % Zn. The chain shall have a resistance value of 2,5 Ω/m ± 20 % when stretched with a load of 200 g/m.
NOTE: The resistance value of the test chain should be checked before each measurement.
HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Plugs and Socket Outlet Gauge, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
