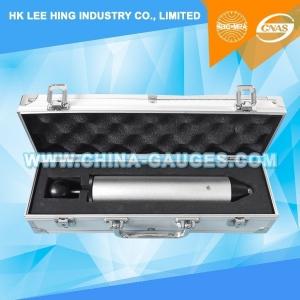

Spring Hammer with Energy Impact of 0.5J

Brand Name : JLX

Model Number : LX-IK04

Certification : ISO 17025 CNAS & ILAC Test Report

Place of Origin : Made in China

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 200 per month

Delivery Time : 5 working days

Packaging Details : Export standard packing

Standard : IEC60068

Contact Now

IEC60068-2-75 0.5J Spring Impact Hammer

Introduction:

The spring Hammer consists of three principal parts: the body, the striking element and the release system.

It's used to test the mechanical integrity of product enclosures. After applying the impact with the hammer, the product is examined with accessibility probes to determine access to shock, energy, and injury hazards. Built in exact accordance with IEC/EN, UL/CSA and other international standards.

Application:

Impact hammers are used to check the durability of enclosures for electrical appliances and household of other electronic products such as shell, lever, handle, knobs, lights and others. If damage occurs from the Impact Hammer test, accessibility probes can be used to measure the extent or severity of the damage. The Impact Hammer simulated the mechanical impact to which electrical equipment may be subjected.

Technical Parameters:

Length	211mm
Weight	1250g
OD	50mm
Hammer Weight	60g
Hammer radius	10mm
The release force of impact	<10N
