BS1363 Plugs Socket Outlets Gauges
Brand Name : JLX
Model Number : LX-BS1363
Certification : ISO 17025 CNAS & ILAC Test Report
Place of Origin : Made in China
MOQ : 1
Payment Terms : T/T, Western Union
Supply Ability : 200 per month
Delivery Time : 5 working days
Packaging Details : Export standard packing
Standard : BS1363
BS1363 Plugs Socket Outlets Gauges
1. Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to BS 1363 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.
2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC; Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.
3. Specifications:

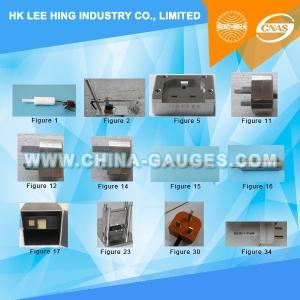

| Testing Gauge BS1363 British Standards Plug Gauges | ||
| Name | Description | QTY (piece) |
| BS1363-2-Fig1 | Test PIN | 1 |
| BS1363-2-Fig2a.2b | Elastic shell mechanical strength test device | 1 |
| BS1363-2-Fig 5 | plug gauges | 1 |
| BS1363-2-Fig11 | plug gauges | 2 |
| BS1363-2-Fig12 | Contact test gauge | 1 |
| BS1363-2-Fig14 | Non contact test | 1 |
| BS1363-2-Fig15 | Insert transverse stress gauge | 1 |
| BS1363-2-Fig16 | Insert pull-out force gauge | 2 |
| BS1363-2-Fig17a/b | Temperature rise test device and the | 1 |
| simulationpanel | ||
| BS1363-2-Fig19 | Stainless steel solid fuse | 1 |
| BS1363-2-Fig23 | Pressure test device | 1 |
| BS1363-2-Fig29 | correction clamp | 1 |
| BS1363-2-Fig30 | gauges | 1 |
