Spring Hammer Impact Calibration Device, Spring Shock Energy Detection Equipment
Place of Origin : China
Brand Name : Julixing
Incoterms : DAP
Transportation : DHL Express
Product Style : Lab Equipment
MOQ : 1 set
Price : Contacts us
Packaging Details : Standard packing
Payment Terms : T/T,Western Union,MoneyGram,AliExpress
Supply Ability : 500 Set per month

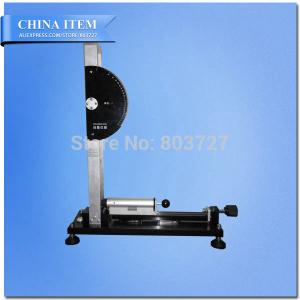

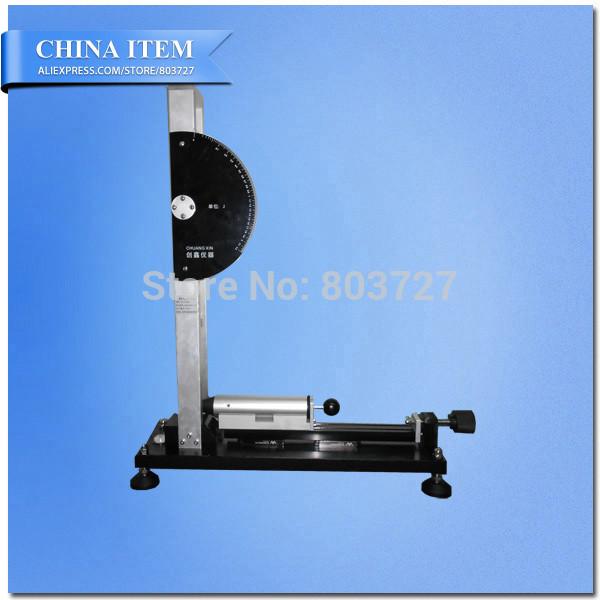

Spring Hammer Impact Calibration Device
Principle of calibration:
The principle of this calibration procedure is to compare the energy provided by a spring hammer, which is difficult to measure directly, to the energy of a pendulum, calculated from its mass and height of fall. And it's designed with the requirements of Annex B of IEC60068-2-75.
Construction:
It's maily made of a frame, a bearing, a drag pointer, a pendulum, a release base and a release device.
Notes:
The Calibration Device fo Spring Hammer can be used for all models, allowing verification of the proper functioning of different types of hammers with the same calibration.
The spring is designed for calibrating spring hammers having characteristics as defined for energy values equal to less than 2J.
Conforms to:
IEC60335, IEC60065, IEC60745, IEC61029, IEC60601, IEC60610 etc.
Technology parameters:
| Características del Equipo | |
|---|---|
| Pendulum specifications: |
|
| Impact energy: | 0 a 2J. |
| Weight: | 21 Kg. |
| Release device: | Ac. Mechanic. |
| Finish: |
|
| According to: |
|
