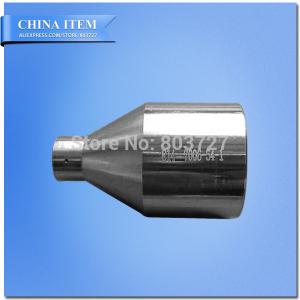

IEC EN 60061-3, BS EN 60061-3 7006-54-1 E14 Gauge for Finished Lamps Fitted with E14 Caps
Place of Origin : China
Brand Name : Julixing
Incoterms : DAP
Transportation : DHL Express
Product Style : Lab Equipment
MOQ : 1 set
Price : Contacts us
Packaging Details : Standard packing
Payment Terms : T/T,Western Union,MoneyGram,AliExpress
Supply Ability : 500 Set per month
The gauge is shown in the test position. In the rest position, the plunger shall be above plane V.
PURPOSE: To check lamp dimensions for contact making in IEC holders.
TESTING: The shape of the lamp with regard to the fit in the lampholder is assumed to be correct if the lamp can be pushed into the gauge till plane W reaches plane V or projects beyond it.
The application of this gauge is restricted to the following lamps when they are fitted with E14 caps, in accordance with sheet 7004-23:
Candle lamps
Round bulb lamps
Domestic tubular lamps
Pygmy lamps.
Shenzhen Julixing Instruments Co., Ltd. are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
