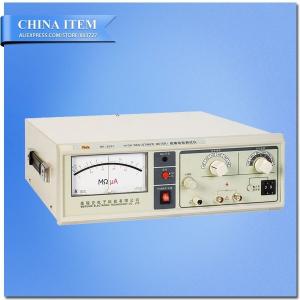

100K ohm-5T ohm Pointer Display Insulation Resistance Tester
Place of Origin : China
Brand Name : Julixing
Incoterms : DAP
Transportation : DHL Express
Product Style : Lab Equipment
MOQ : 1 set
Price : Contacts us
Packaging Details : Standard packing
Payment Terms : T/T,Western Union,MoneyGram,AliExpress
Supply Ability : 500 Set per month
| Test Range | 100KΩ~5TΩ |
| Test Accuracy | R<10GΩ:±3%+0.5 count R≥10GΩ:5%+0.5 count R≥1TΩ:10%+0.5 count |
| Test Voltage | 10V/25V/50V/100V/250V/500V |
| Voltage Accuracy | 2% |
| Control Model | Simulation current |
| Display | pointer |
| Range mode | Manual Control |
| Test speed | Ohmic component:<0.5s,Component:0.5~10s |
| Sorting | Qualified,Unqualified,Unqualified Ring |
| Sorting Set Range | 1.0~9.9*voltage times *range times MΩ |
| Working Environment | 0~40Centigrade,≤85%RH |
| Power Request | 220V±10%,50Hz±5% |
| Power consumption | <30VA |
| Dimensions | 375*355*140mm |
| Weigh | 6.3kg |
Shenzhen Julixing Instruments Co., Ltd. are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
