Lab and Factory Equipment IEC60529 IPX3/4 Handle-Held Jet Spray Nozzle Water Test Kits
Place of Origin : China
Brand Name : Julixing
Incoterms : DAP
Transportation : DHL Express
Product Style : Lab Equipment
MOQ : 1 set
Price : Contacts us
Packaging Details : Standard packing
Payment Terms : T/T,Western Union,MoneyGram,AliExpress
Supply Ability : 500 Set per month
Lab and Factory Equipment IEC60529 IPX3/4 Handle-Held Jet Spray Nozzle Water Test Kits

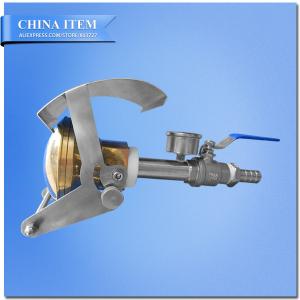

The Spray Tester IPX 3/4 is a hand-held test device to verify protection against spraying and splashing water. The water pressure can be adjusted using the flow control knob on the device to give the required flow rate.
The pressure can be seen on the gauge which is convenient positioned by the Spray Tester IPX 3/4.The spray pattern of the nozzle is made to the specifications of IE60529. The removable shield feature make it easy to test without the interference of the shield .
| Number of holes | Total 121 |
| Diameter of nozzle holes | 0.5 mm |
| Material | Spray nozzle made of brass |
| Pressure gage | 0 ~ 0.25Mpa |
| Water discharge | 10L/min, ±5%, can adjustment |
| Reference | IEC60529 IPX3 IPX4, IEC60598-1, IEC 60335-1, IEC60745-1 |
| Nozzle diameter | 102 mm |
| Nozzle hole surface radian | 78° |
Shenzhen Julixing Instruments Co., Ltd. are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
