IEC60529 Low Pressure Water Stream IPX5 Jet Nozzle for Waterproof Lab Equipment
Place of Origin : China
Brand Name : Julixing
Incoterms : DAP
Transportation : DHL Express
Product Style : Lab Equipment
MOQ : 1 set
Price : Contacts us
Packaging Details : Standard packing
Payment Terms : T/T,Western Union,MoneyGram,AliExpress
Supply Ability : 500 Set per month

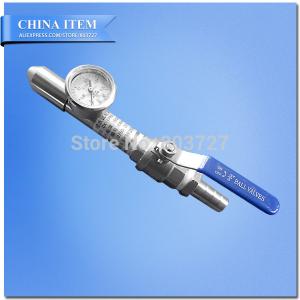

IEC60529 IPX5 Jet Nozzle for Waterproof Lab Equipment
Test Set consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve.
The nozzles are made from stainless steel.
| Item | IPX5 |
| Water supply | Water flow rate > 12.5L/min±5% clean water witho ut inclusion. It can be achieved by the stainless steel water tank and pressurized equipment. |
| The nozzle diameter | 6.3 mm |
| Water flow | 12.5±0.625L/min, Flow meter is adjustable. |
| Testing time | Not less than 1min/m2 (not less than 3 mins) |
| Environment requirements | Dedicated IP waterproof test room whose width is more than 3m, With good function of inflow and drainage. Wall installation. |
| The distance from jet nozzle to enclosure | 2.5~3m |
| Pressure Gauge | 0 - 2.5 bar ( 0 - 0.25 MPa ) |
| Reference standards | IEC60529,IEC60598-1,IEC60335-1,IEC60745-1 |
| Nozzle Material | Stainless Steel |
| Include | Pressure gauge, Stainless steel nozzle IPX5, Valve for water flow regulation and shut off, Hose connector. |
Shenzhen Julixing Instruments Co., Ltd. are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
