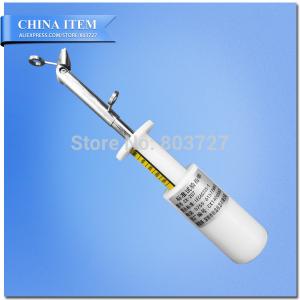

Finger Nail Test Probe with 50N Force

Appliance:

The Finger Nail Probe is indicated test IEC60335 and UL requirements. Used to check the security of parts that snap together. The spring gauge assembled in the handle can be calibrated to the neccessary force for using the instrument. This probe is make of stainless steel with appropriated hardened tip and a handle in insulating material. Handle has a special adaptor M5 for use with 50N force gauges.

Conforms to:

Standard IEC60335, IEC60475 and UL1205 etc.

Specifications:

Force gauge: To be used with a 10/20/30/40/50N Force gauge

Application: To be used with a push and pull force gauge or a rigid test finger

Material: Handle is nylon and the tip is stainless steel.

We also provide other probes for household appliance testing, such as Jointed Finger Test Probe, Cylindrical Pin Test Probe, Short Pin Test Probe, Children Test Finger Probe 18, Children Test Finger probe 19, 2.5mm Rod Test probe and so on.

Key
A) insulating material;
B) spring with a constant suitable for providing a push force as specified in 22.11 on the test finger nail;
C) loop.
