IEC 60884-1 Figure 10 Gauge with 1N Force and EN 60884 Figure 9 Gauge with 20N Force

Application:

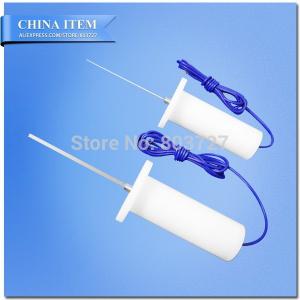

Gauge: 80mm long, 1N force. 20 N force. Conforms to IEC884-1 Figure 10 and Figure 9, Gauge for checking non-accessibility of live parts, through shutters, and of live parts of socket-outlets with increased protection. The handle is made of nylon, tip is made of hardened steel.

Technical parameter:

20N Probe Size	3mm×1mm(wide × thick)
1N Probe Diameter	φ1.0mm
Test probe length	80mm
Force	1N&20N
Material	The handle is made of nylon, tip is made of hardened steel

Gauges: Figure 9 20N

To calibrate the gauge, a push force of 20 N is applied on the steel rigid wire in the direction of its axis:

the characteristics of the gauge internal spring shall be such that the surface A – A′ is brought practically to the same level as the surface B – B′ when this force is applied.

Figure 9 – Gauge for checking non-accessibility of live parts, through shutters

Gauges: Figure 10 1N

To calibrate the gauge, a push force of 1 N is applied on the steel rigid wire in the direction of its axis:

the characteristics of the gauge internal spring shall be such that the surface A – A′ is brought practically to the same level as the surface B – B′ when this force is applied.

Figure 10 – Gauge for checking non-accessibility of live parts, through shutters, and of live parts of socket-outlets with increased protectio
